MT4 (iOS) Drawing Methods for Lines and Other Objects

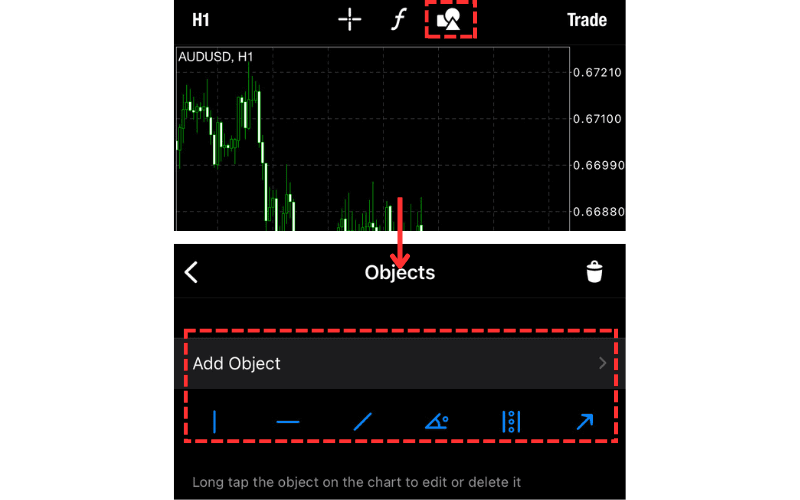

To draw lines and other objects in MT4 for iOS, tap the icon at the top right of the screen, then select 'Add Object' and choose from the list of objects displayed.

You can also tap the object icons shown below to start drawing.

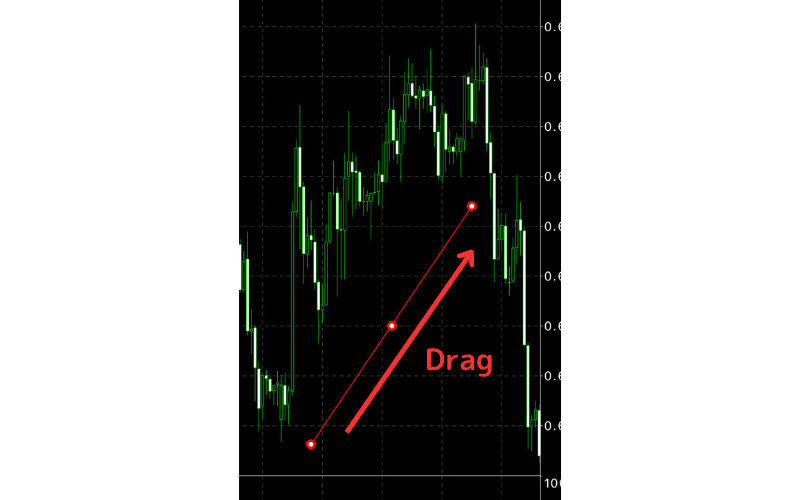

For horizontal or vertical lines, tap at the desired level. For trendlines and similar objects, tap at the starting point on the chart and drag to the endpoint to draw.

Tap on the object to toggle selection. When selected, you can adjust the object by dragging the circles on it.

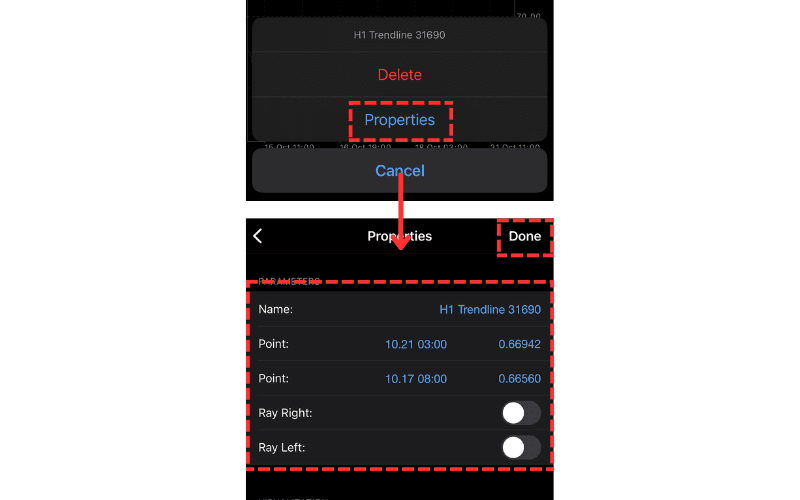

Long press on an object and select 'Properties' from the menu. In the settings, you can extend lines left or right, fine-tune display settings, choose which chart to display it on, and set colors and styles. Tap 'Done' at the top right to apply settings.

Deleting from the Chart

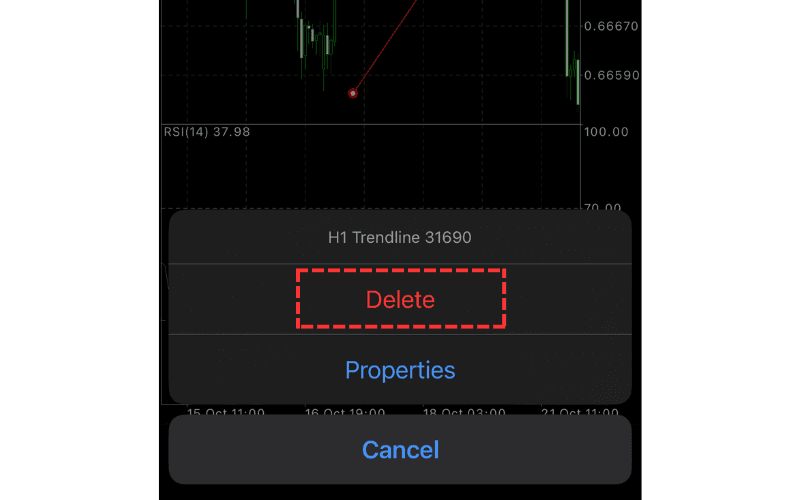

Long press on an object and select 'Delete' from the menu that appears to remove the object.

Deleting from the Object List

To delete lines and other objects, tap the object icon at the top left of the screen or tap the screen to access the menu, then select 'Objects' to show the list of displayed objects.

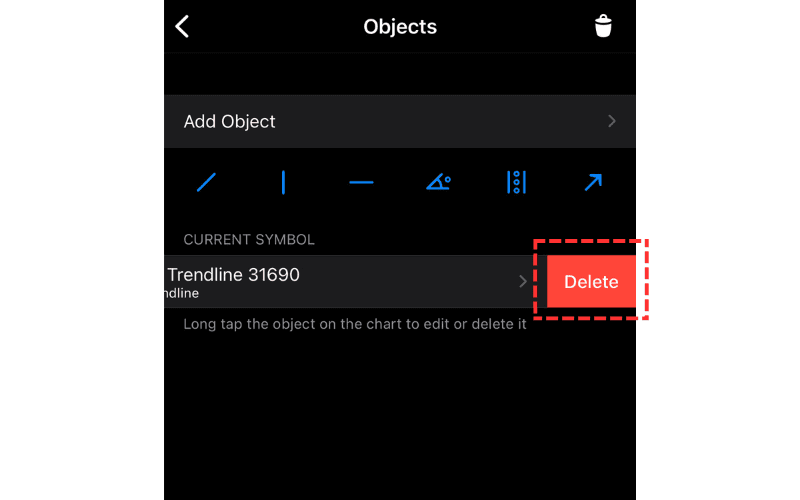

Swipe left on the object you want to remove and tap the 'Delete' button that appears.
