How to Customize Timeframes on MT5 Toolbar (Windows)
You can freely customize the timeframe settings display on the MT5 toolbar. Setting it to frequently used timeframes allows for more efficient operation.
How to Customize Timeframe Settings Display on Toolbar

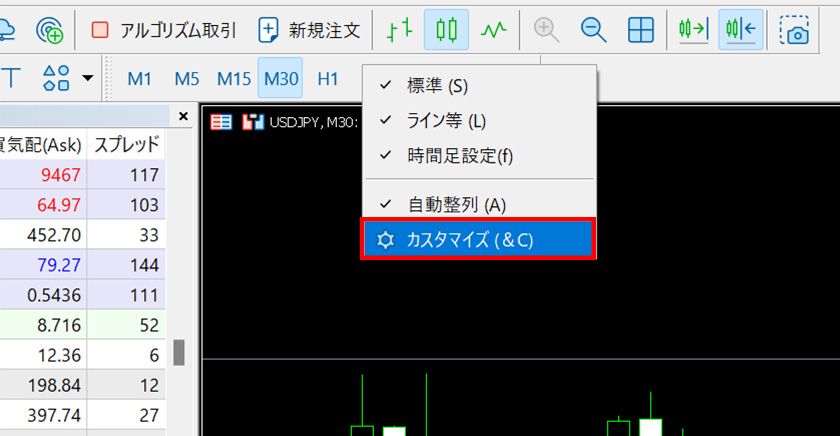

Hover the cursor over the "Timeframes" section of the toolbar, right-click, and select "Customize" from the menu that appears.
![](https://research-titanfx-cms.s3.ap-southeast-1.amazonaws.com/timeframe_toolbar_01_3ac4a30055.jpg)
In the "Customize Toolbar" dialog, you can select the timeframes to display. The left side shows hidden timeframes (available timeframes), and the right side shows displayed timeframes (currently displayed).
To add a timeframe, select it from the left group and click the "Insert" button in the middle. To remove a timeframe, select it from the right group and click the "Delete" button in the middle. Click the "Close" button in the lower-left corner to complete the settings.
You can also change the display order by moving items up or down using the buttons on the right.
You can display 21 different timeframes: 1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes, 6 minutes, 10 minutes, 12 minutes, 15 minutes, 20 minutes, 30 minutes, 1 hour, 2 hours, 3 hours, 4 hours, 6 hours, 8 hours, 12 hours, daily, weekly, and monthly.
![](https://research-titanfx-cms.s3.ap-southeast-1.amazonaws.com/timeframe_toolbar_02_5e90956302.jpg)
Toggle Timeframe Display On/Off
You can toggle the display of the timeframe settings on the toolbar.

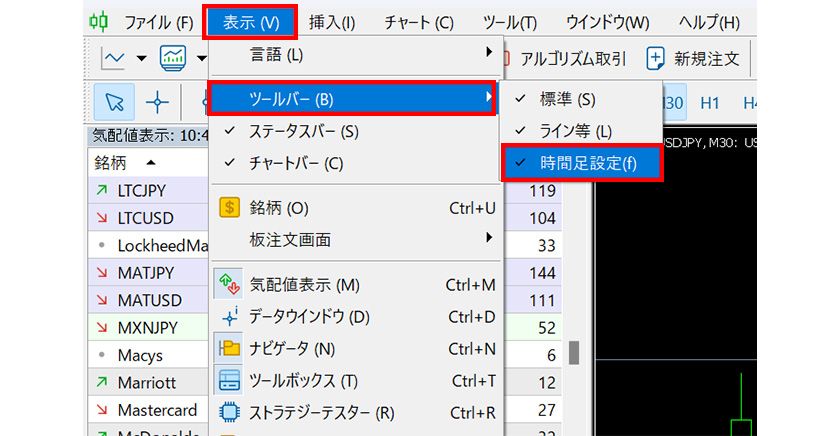

To toggle the display on or off, select "Timeframes" in the "Toolbars" section of the "View" menu.
![](https://research-titanfx-cms.s3.ap-southeast-1.amazonaws.com/timeframe_toolbar_03_15894d2e1d.jpg)
